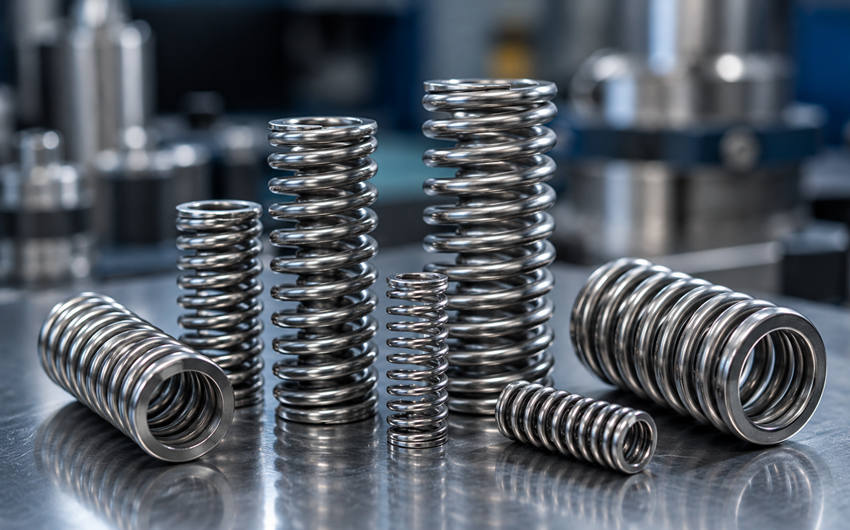

Factors That Influence Load Deflection in Compression Springs
Load deflection shapes how a spring responds under pressure inside a mechanical system. If that response shifts too far from the target, the product may lose force accuracy, motion control, or long-term reliability. That makes load behavior a central issue in spring selection and product design.
A well-designed compression spring must deliver the right force at the right amount of travel. That result depends on several linked factors, including geometry, material, end condition, and working environment. The sections below explain how those factors influence load deflection in practical applications.
Wire Diameter Sets the Basic Force Response
Wire diameter has a strong effect on spring stiffness. A thicker wire creates greater resistance to compression, which raises the force required for a given amount of deflection. A smaller wire leads to a softer response and a lower load at the same height.
This change can alter the product’s feel and mechanical output in a direct way. Even a small shift in wire size can move the load curve enough to affect fit, motion, and return force. For that reason, diameter control must stay exact during design and manufacture.
Coil Diameter Changes Deflection Behavior
Mean coil diameter also affects how the spring reacts under load. A larger coil diameter tends to reduce stiffness, while a smaller diameter increases resistance and creates a firmer response. This relationship makes coil size a major factor in spring rate and total deflection.
The influence becomes clear when space limits narrow the design window. A spring may meet the load target on paper, yet show a different response if coil size changes during production. This is one reason the spring needs close dimensional control across the full geometry.
Active Coils Affect Travel and Spring Rate
The number of active coils plays a major role in load deflection. More active coils usually create a softer spring with greater travel under the same load. Fewer active coils produce a stiffer result and reduce deflection at a given force.
This factor matters because active coils do more than change motion. They also influence stress distribution and how the spring stores and releases energy through repeated use. Good coil count selection helps balance flexibility, strength, and force accuracy in one design.
Material Properties Influence Elastic Response
Material choice affects how the spring reacts to compression and recovery. Different alloys have different modulus values, strength limits, and resistance to permanent set under stress. Those properties shape how closely the spring follows the expected load-deflection path.
Temperature and service conditions add another layer to this issue. Heat, corrosion risk, and repeated cycling can shift material behavior and reduce load consistency over time. A second compression spring with the same dimensions may show a different response if the material grade changes.
End Condition and Alignment Support Stable Performance
Spring ends influence how force enters the part during compression. Closed or ground ends can improve seating and help the load transfer more evenly through the spring body. Poor end condition may create tilt, uneven contact, or unstable deflection during use.
The quality of the finished spring depends heavily on the manufacturer. Precise production methods help create cleaner contact points, better seating, and a more stable axis under compression. That level of control can reduce unwanted movement in the assembly and support a more dependable force response.
Load deflection depends on more than a single measurement or material choice. Wire size, coil diameter, active coils, material behavior, and seating condition all shape how a spring reacts under force. When those factors match the application well, the final product can deliver steadier and more predictable performance.
